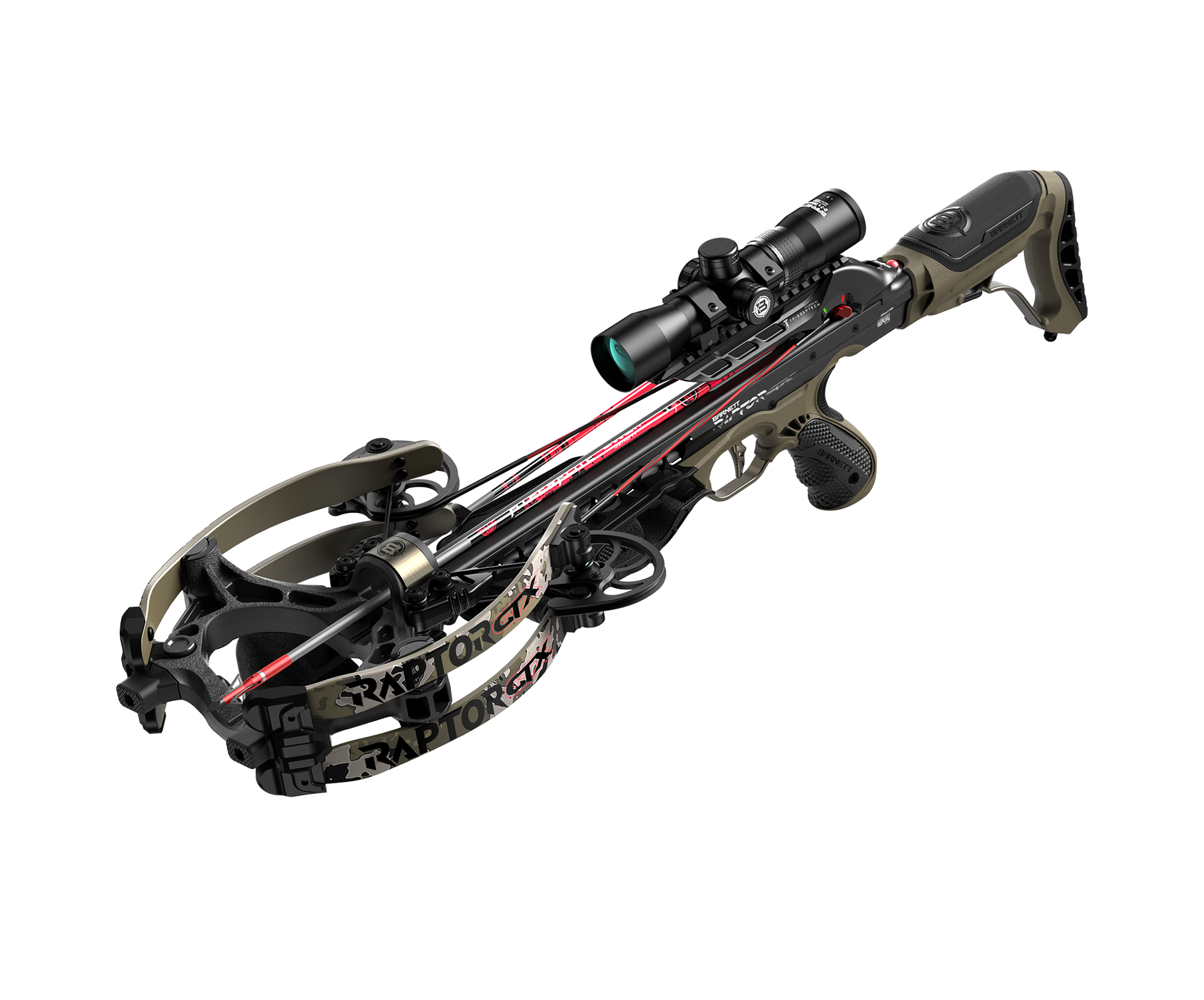

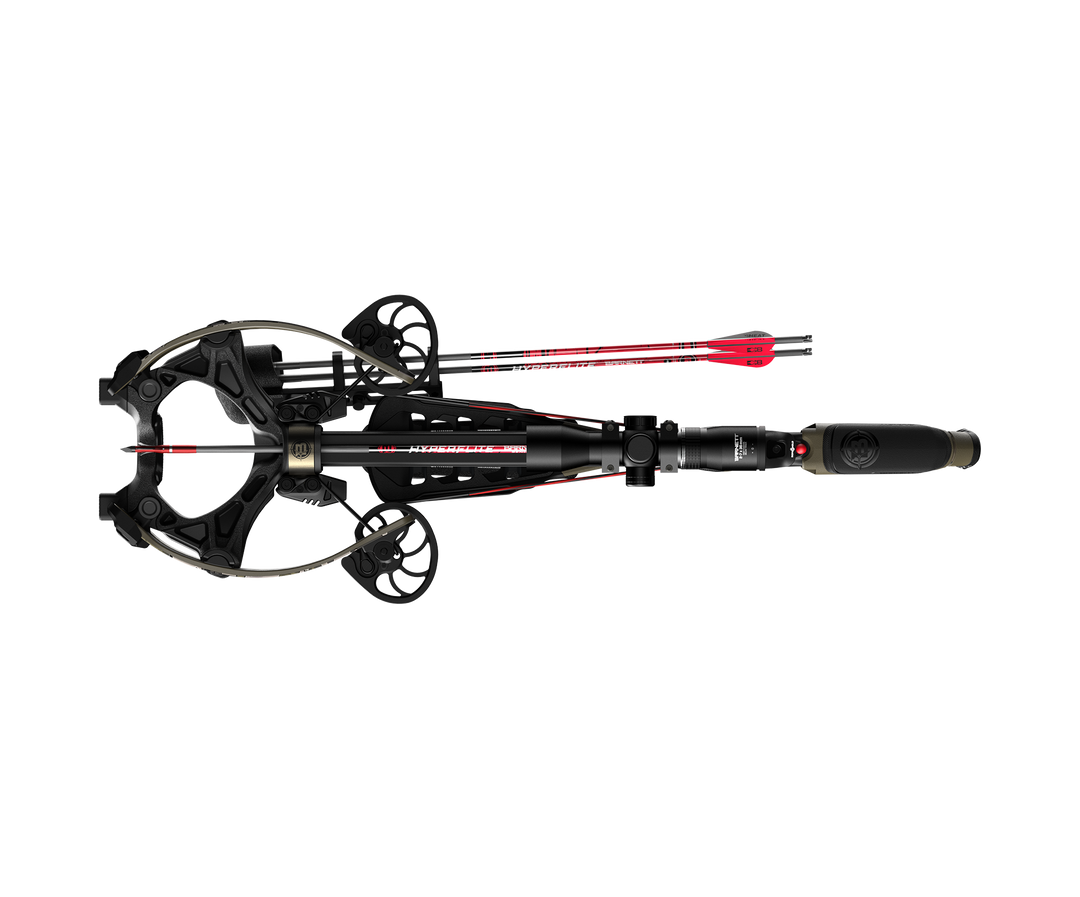

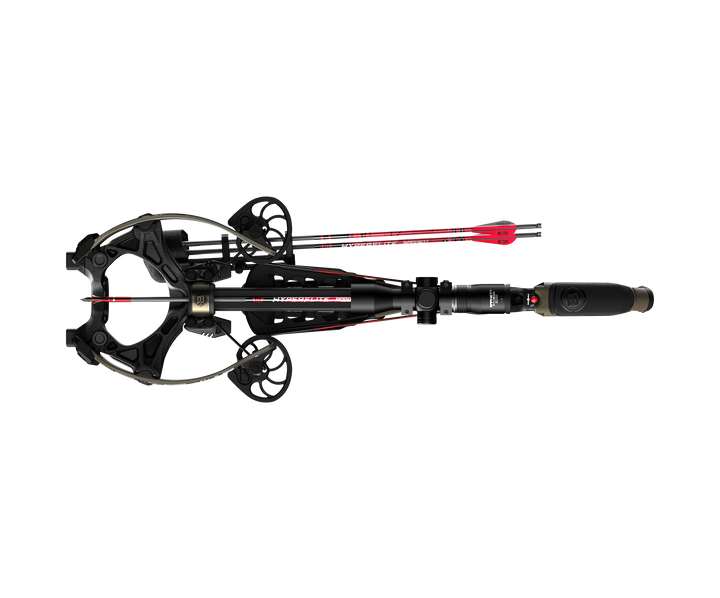

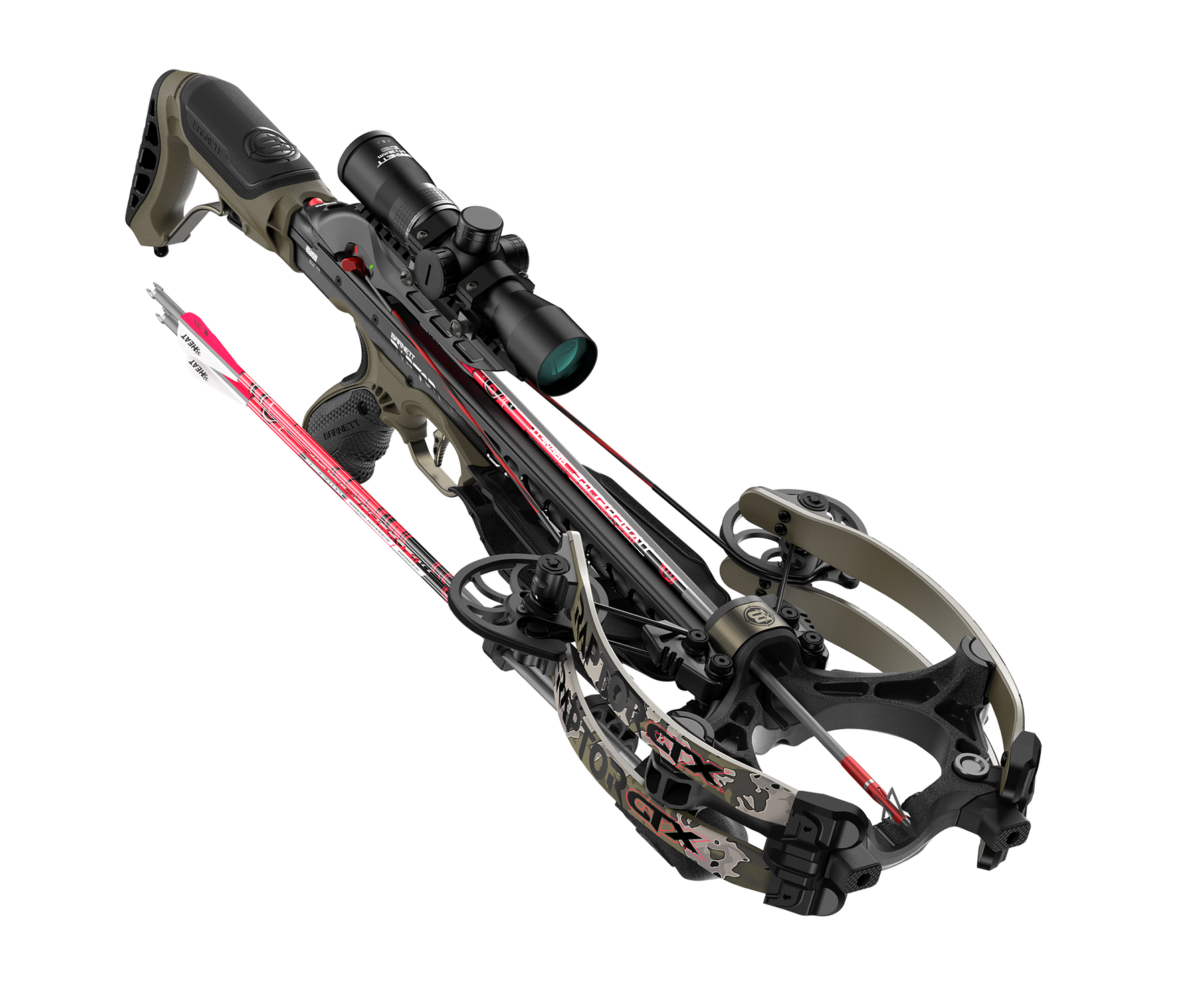

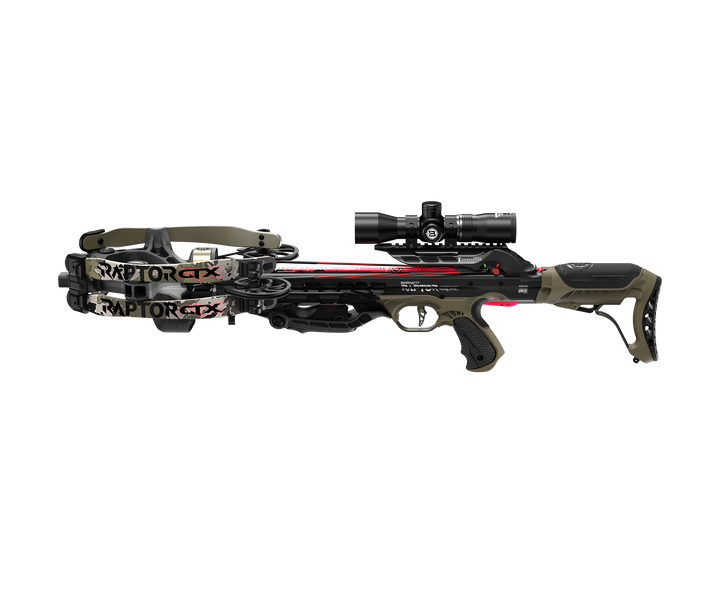

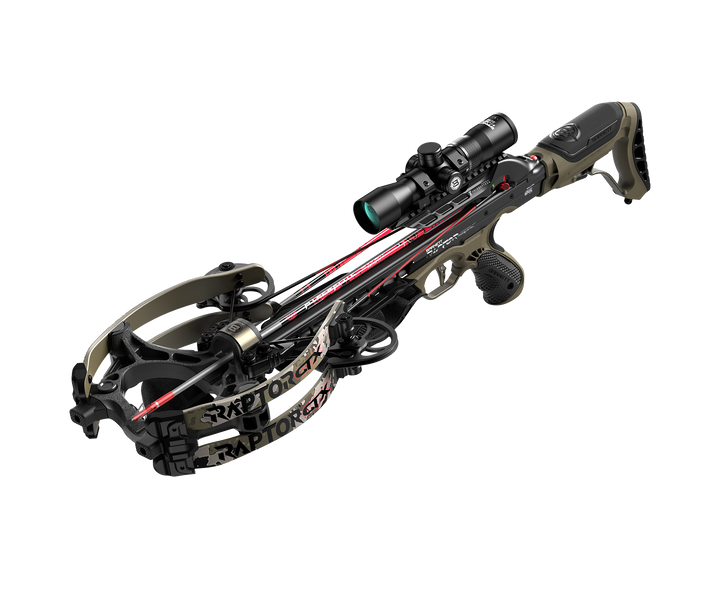

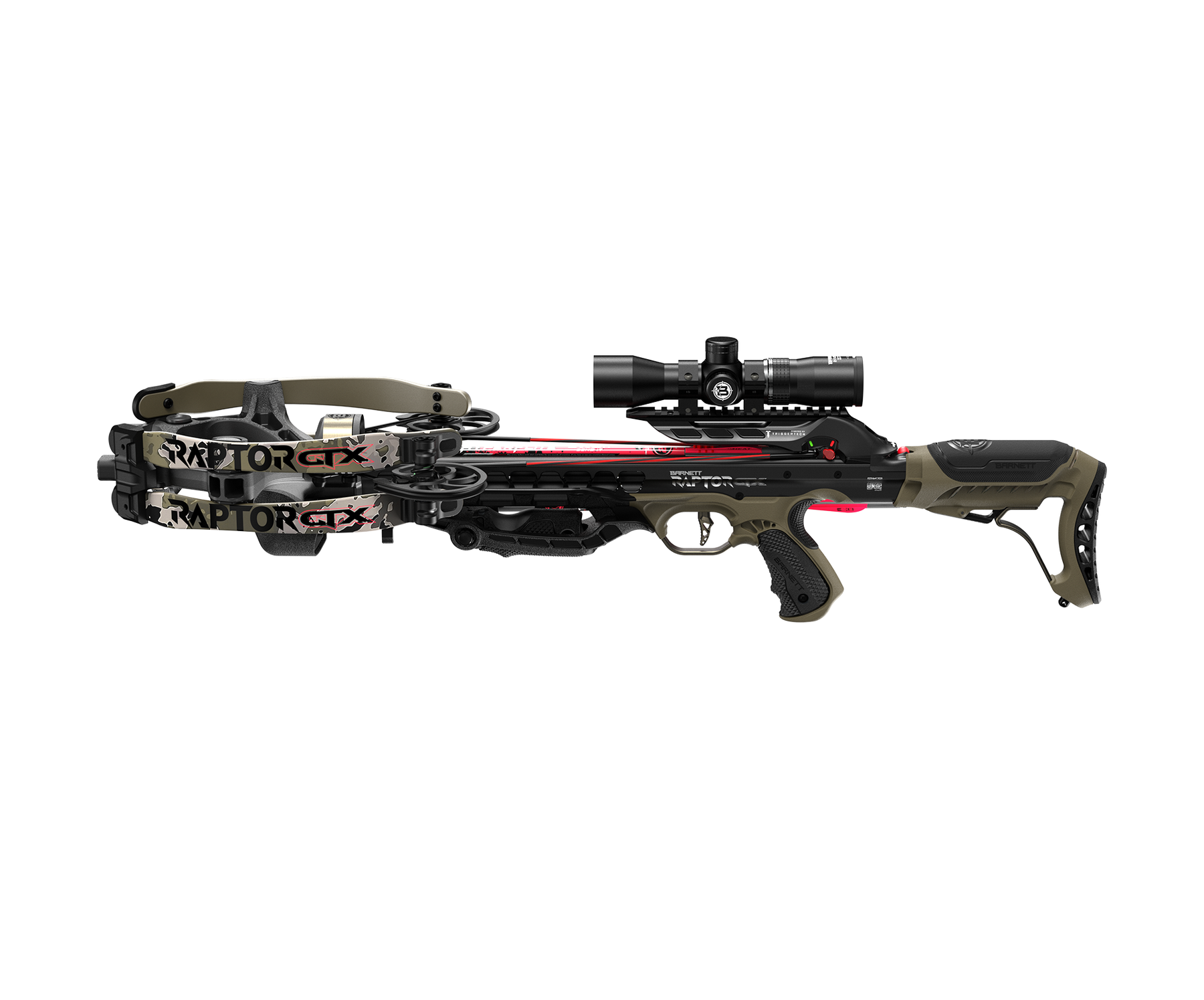

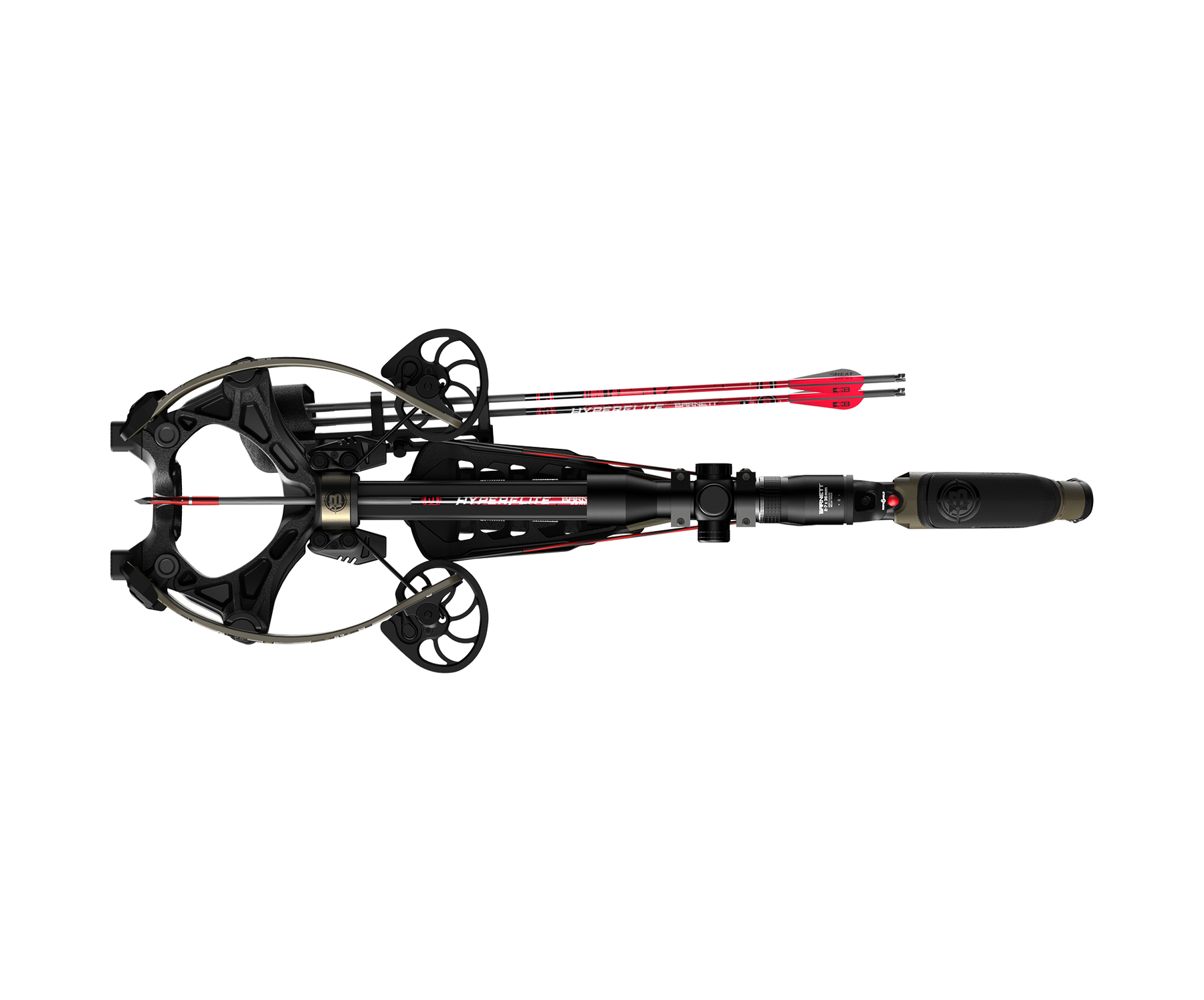

Hyper Raptor GTX
The Hyper Raptor GTX™ delivers high-speed performance in a lightweight, ultra-compact platform built for demanding hunts. Measuring just over seven inches axle-to-axle when cocked, its composite riser and pivoting limb pockets improve balance, stability, and maneuverability while reducing recoil and vibration.
Launching HyperFlite™ arrows at speeds up to 425 FPS with 152 ft-lbs of energy, the GTX is built for deep, consistent penetration. Included 20-inch, .204-diameter HyperFlite™ arrows feature a precision ±.001-inch straightness tolerance, increased front-of-center balance, and more than 25% deeper penetration than standard-diameter arrows. The crossbow is also compatible with 20-inch HeadHunter™ arrows.
Barnett’s Halo System eliminates cable crossing and reduces cam lean for cleaner string travel and improved accuracy. A CNC-machined aluminum flight track, Soft Lok™ Floating Bristle Arrow Retainer, and TriggerTech™ Frictionless Release Technology work together to deliver smooth, repeatable shots with a crisp 3-pound trigger pull.

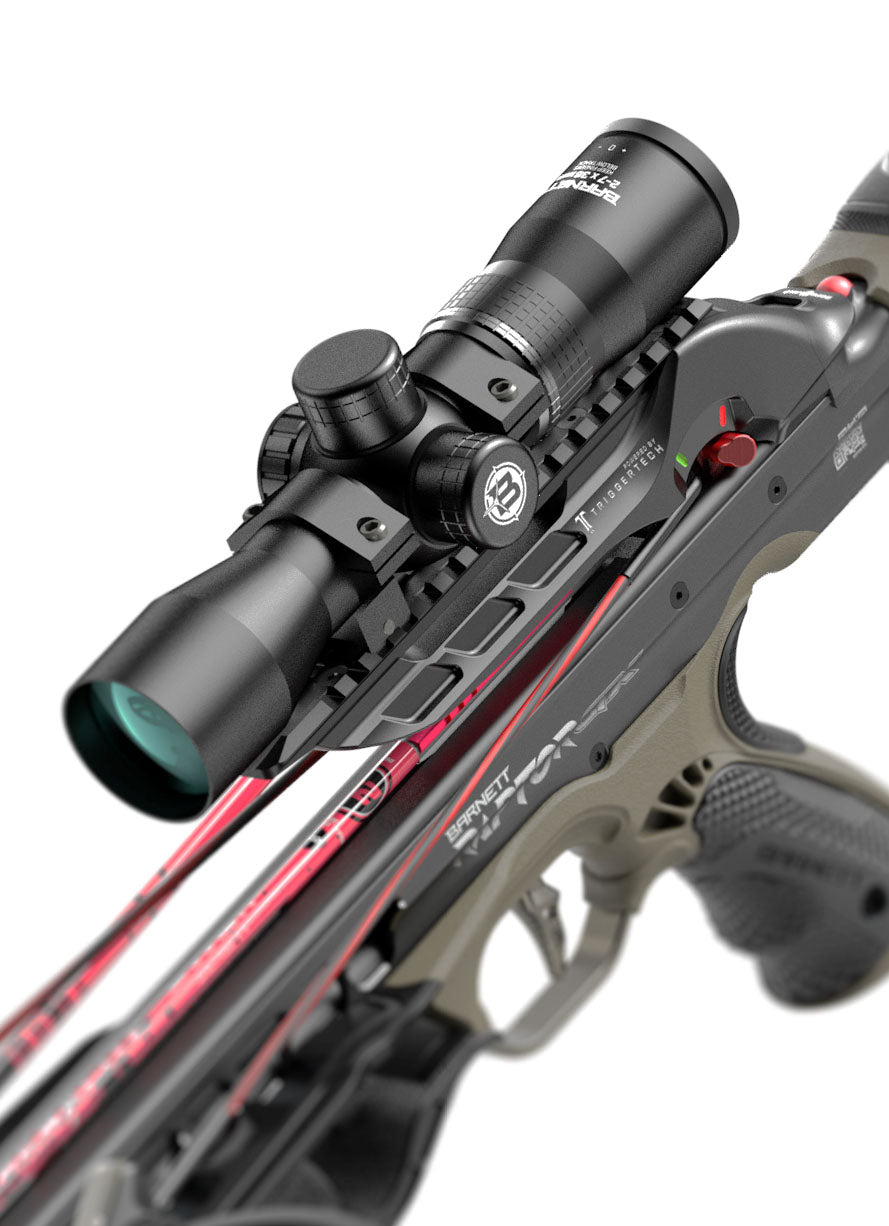

Additional features include an Anti-Dry Fire system, nock sensor, Rope Hold™ Roller Ball technology, adjustable buttstock, padded cheek rest, Verti-Grip palm rest, string suppressors, and finger-safety reminders. A premium illuminated 2–7x36mm speed-dial scope provides a clear sight picture and precise velocity adjustment across changing light conditions.
Finished in textured Ranger Green with custom camouflage limbs, the Hyper Raptor GTX™ combines compact handling, serious power, and refined accuracy in one purpose-built hunting crossbow.
Dimensions: 32" x 15.6"
Axle to Axle: 7.5" cocked
Product Weight: 7.9 lbs
Draw Weight: 220 lbs
Kinetic Energy: 152 ft-lbs
Power Stroke: 13.5"
Speed: Up to 425 FPS
FREE $200 CUSTOM TRIGGER UPGRADE
The Frictionless Release Technology™ creates a free-floating roller between the sear and the trigger – offering a smoother, lighter trigger unlike anything else on the market. Nock sensors and anti-dry fire give you peace of mind for double the safety, and a three-pound, zero-creep release gives you confidence to make the shot. Once you go TriggerTech, you’ll never go back.
- Halo System (Patents & Patents Pending)
- Rope Hold Roller Ball Technology (Patent Pending)
- Pivoting Limb Pockets
- Proprietary Step-Through Riser (Patented)
- Single Bolt Assembly
- Self-timing Infinity Cams (Patented)
- 20” HyperFlite™ .204 Small Diameter Compatibility (Patent Pending)
- Can Shoot Standard Diameter Arrows
- Anti-Dry Fire (ADF) Trigger System
- Updated TriggerTech Frictionless Release Technology (Patented)
- CNC Machined Aluminum Flight Track
- Soft-Lok Floating Bristle Arrow Retainer (Patented)
- Adjustable Length-of-Pull Butt Stock
- Pass-Through Forend with Verti-Grip Palm Rest (Patent Pending)
- Pre-installed String Dampeners
- Continuous Fiber Molded Limbs
- Lightweight Composite Riser
- Three 20” HyperFlite™ Arrows
- 2-7x36mm Speed-Dial Illuminated Scope
- Hyper Raptor Rope Cocking Device
- Premium Side-Mount Quiver with Hyper Raptor Quick Detach Mount
- Lubrication Wax
- US Patents
- 7,174,884 - Trigger Assembly (ADF).
- 9,759,509; 9,829,268; 10,048,036
- “Projectile launching device with self-timing and no cam lean”
- Rope-Hold™ - Patent Pending.
- Additional Patents Pending.
